Profile Elite AL HD Crank Set 165mm Silver – 30mm Axle BMX / MTB Cranks

The Profile Elite AL Crank Set 165mm (Silver) is a premium USA-made crankset engineered for maximum strength, precision performance, and long-term durability. Precision CNC-machined from high-grade 2024 billet aluminum, the Elite AL delivers exceptional stiffness and power transfer for BMX racing, MTB Dirt Jump and Down Hill applications.

Manufactured in St. Petersburg, Florida, Profile Racing cranks are trusted worldwide by riders who demand elite-level reliability and performance.

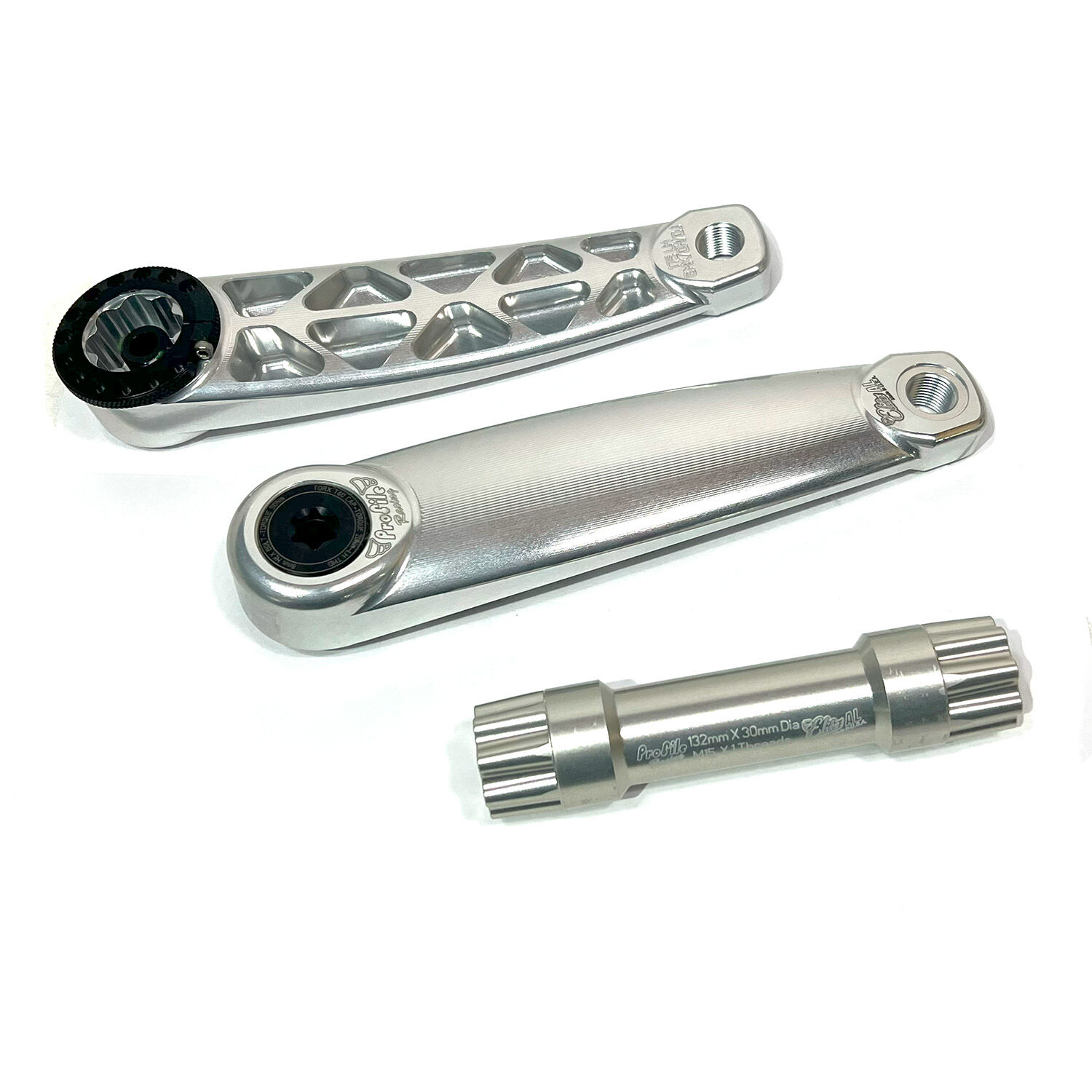

Kit Includes

• Left & Right Elite AL crank arms
• 30mm aluminum axle
• Stainless steel pedal washers
• 8 × T20 Torx mounting screws

Profile Elite AL Direct Mount Single Chainring Spider and 30mm Bottom Bracket sold separately

Key Features

• Precision CNC 3D-machined from 2024 billet aluminum
• Heavy-duty crank arm design for maximum strength and stiffness
• Adjustable preload ring on non-drive arm for accurate bottom bracket setup
• Self-extracting axle bolts (8mm Hex) with T60 Torx caps
• Compatible with 30mm axle bottom brackets
• Durable anodized finish
• Made in the USA
• Backed by a 2-year warranty

Specifications

Q-Factor

• 173mm – 68mm BSA / BB86 bottom bracket
• 178mm – 73mm BSA / BB92 bottom bracket

Chainline

• 45mm – 68mm BSA / BB86 with 3mm offset spider/chainring
• 47.5mm – 73mm BSA / BB92 with 3mm offset spider/chainring

Available Crank Lengths

165mm,, 170mm, 172.5mm, 175mm 177.5mm, 180mm

Axle Details

• Material: 7075 Aluminum
• Diameter: 30mm
• Interface: Profile 8-Spline Taper
• Thread: M15 × 1 axle bolt
• Axle Lengths:
  • 132mm — 68mm BSA & BB86
  • 137mm — 73mm BSA & BB92

Mounting Interfaces

• Axle Interface: Profile 8-Spline Taper
• Spider / Chainring Mount: SRAM 8-Bolt (T20 Torx)

Construction & Hardware

• Crank Arm Material: 2024 Billet Aluminum
• Weight: 725g (170mm arms with bolts & caps)
• Hardware Includes:
  • M15 × 1 steel self-extracting bolts (8mm Hex)
  • 6Al-4V titanium T60 Torx caps (black anodized)
  • Stainless steel pedal washers
  • 8 × T20 Torx mounting bolts

Compatibility

Elite AL crank arms and axle are proprietary and must be used together.

However, the crankset is compatible with:

• Most 30mm axle bottom brackets
• SRAM 8-Bolt spiders and chainrings
• A wide range of aftermarket drivetrain options

Made in the USA

Like all Profile Racing cranksets, the Elite AL is proudly manufactured in St. Petersburg, Florida, USA, ensuring exceptional quality control and long-term performance.
