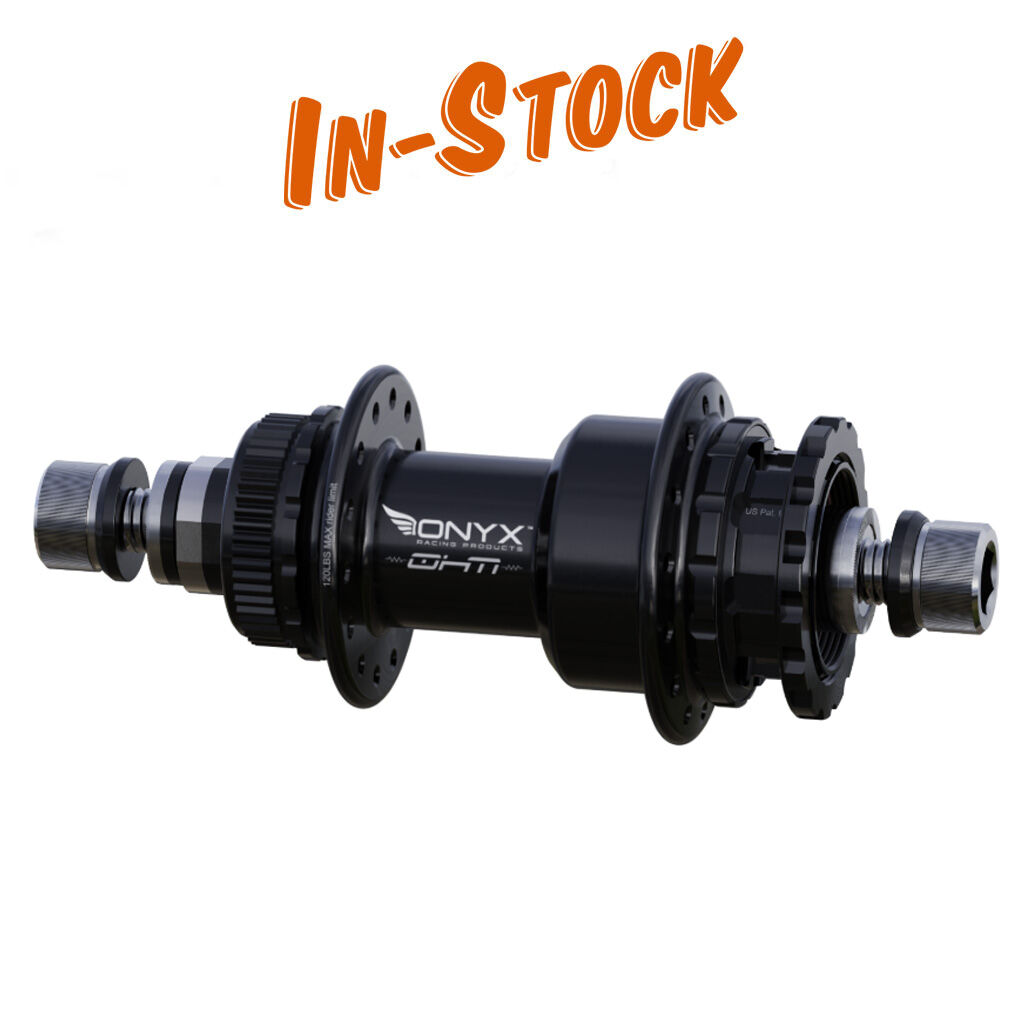

ONYX BMX OHM Rear Centre Lock Hub (10mm Bolt On) 28H Black

The Onyx OHM Hub Set delivers the proven Sprag Clutch engagement system in a lighter, more accessible package for the next generation of riders. With centerlock disc compatibility, stainless hardware, and smooth steel cartridge bearings, the OHM set balances performance, reliability, and value.

Bolt-on BMX hubs are designed to work in conjunction with Chain tensioner(s) and have a MAX bolt torque of 15 Nm

Product Highlights

  • Sprag Clutch engagement system with instant, silent power transfer
  • Centerlock disc-compatible rear hub
  • Front and rear hub set with 10mm bolt axles
  • Stainless steel hardware and steel cartridge bearings
  • HG driver compatible with internal and external lock rings
  • Lightweight design with a 120 lb rider weight limit
  • Spoke Count: 28H
  • Axle Width: 110mm
  • Hub Center To Flange Center, Non-Drive Side: 21.65mm
  • Distance Lock Nut to Flange, Non-Drive Side: 33.35mm
  • Hub Center To Flange Center, Drive Side: 27.87mm
  • Distance Lock Nut to Flange, Drive Side: 27.13mm
  • PCD / Spoke Hole Circle Diameter, Non-Drive Side: 42mm
  • PCD / Spoke Hole Circle Diameter, Drive Side: 47mm

Design the hub of your dreams with our configurator.
Choose from all the options to build the exact hub for your specific needs.

All ONYX orders are custom orders made to your specifications when placed and are final and non returnable items. Please choose your options carefully and double check your build!

SKU: 099083

A - Hub Center To Flange Center, Non-Drive Side (mm) 21.65
B - Hub Center To Flange Center, Drive Side (mm) 27.87
C - Axle Width (mm) 110
Spoke Hole Circle Diameter, Drive Side (mm) 47
Spoke Hole Circle Diameter, Non-Drive Side (mm) 42
Spoke Hole Counts Available 28
SKU 82HUBSR04BMXOHMBOLT28BLK
Brand ONYX
Shipping Weight 0.2500kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.150m
