PLEASE NOTE THESE ARE NOT A STOCK ITEM

(WE DO NOT CARRY THESE 'IN STOCK')

As these are custom made, please allow 4-6 weeks for Manufacture, due to this they cannot be cancelled once ordered

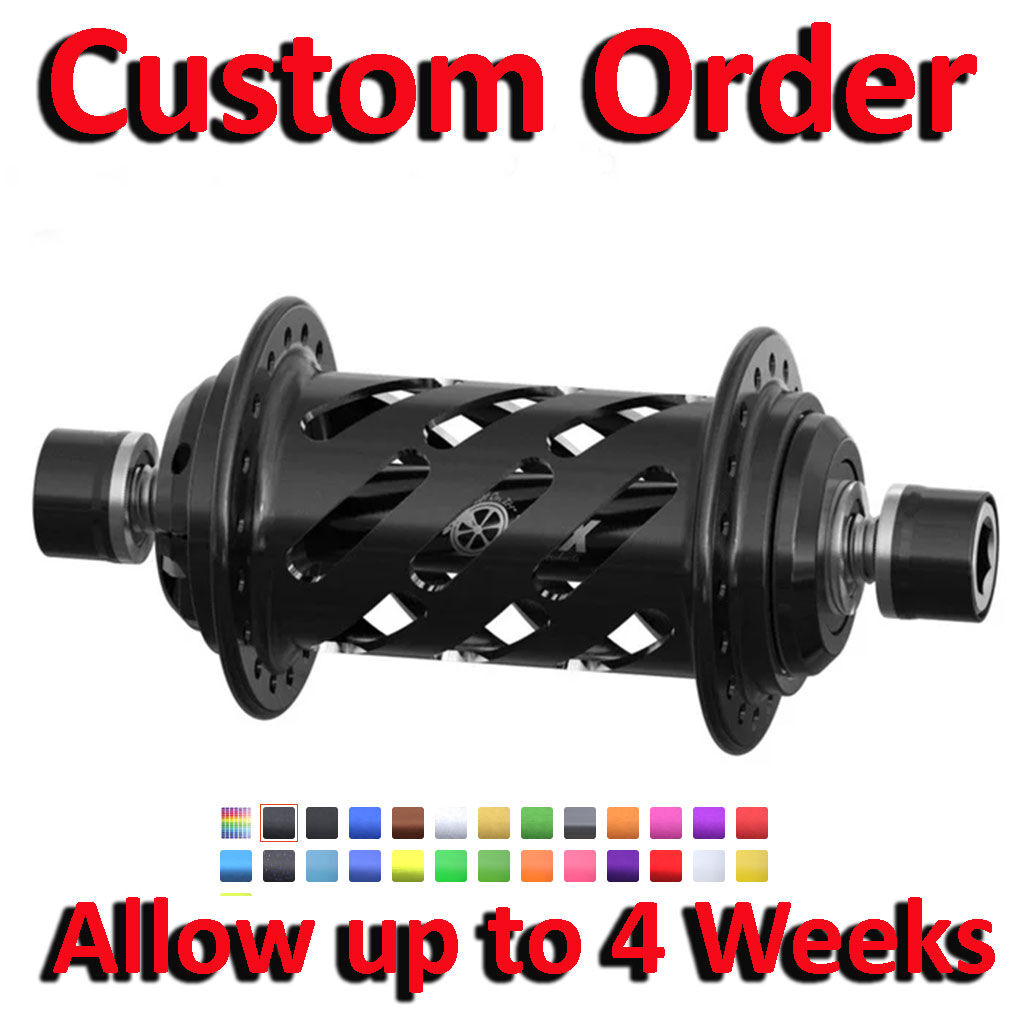

Onyx BMX 100/10mm Bolt-on Helix Front Hub

Onyx Racing Products: the top of the range of BMX Racing hubs.
EZO ceramic bearings reduce front wheel rolling resistance to the point of disbelief.

  • CNC machined aluminum 7075 body
  • Big shape body
  • EZO Ceramic bearings
  • Drilling: 28, 32 or 36 spokes
  • Axle 10mm with Titanium BTR bolts
  • Weight: 220g

Design the hub of your dreams with our configurator.
Choose from all the options to build the exact hub for your specific needs.

All ONYX orders are custom orders made to your specifications when placed and are final and non returnable items. Please choose your options carefully and double check your build!

A - Hub Center To Flange Center, Non-Drive Side (mm) 34.8mm
B - Hub Center To Flange Center, Drive Side (mm) 34.8mm
C - Axle Width (mm) 100mm
Spoke Hole Circle Diameter, Drive Side (mm) 50mm
Spoke Hole Circle Diameter, Non-Drive Side (mm) 50mm
Spoke Hole Counts 28/32/36
Spoke Tension 120kgf Max
SKU 82HUBF03HELIXBOLT
Brand ONYX
Shipping Weight 0.2500kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.150m
