PLEASE NOTE THESE ARE NOT A STOCK ITEM

(WE DO NOT CARRY THESE 'IN STOCK')

As these are custom made, please allow 4-6 weeks for Manufacture, due to this they cannot be cancelled once ordered

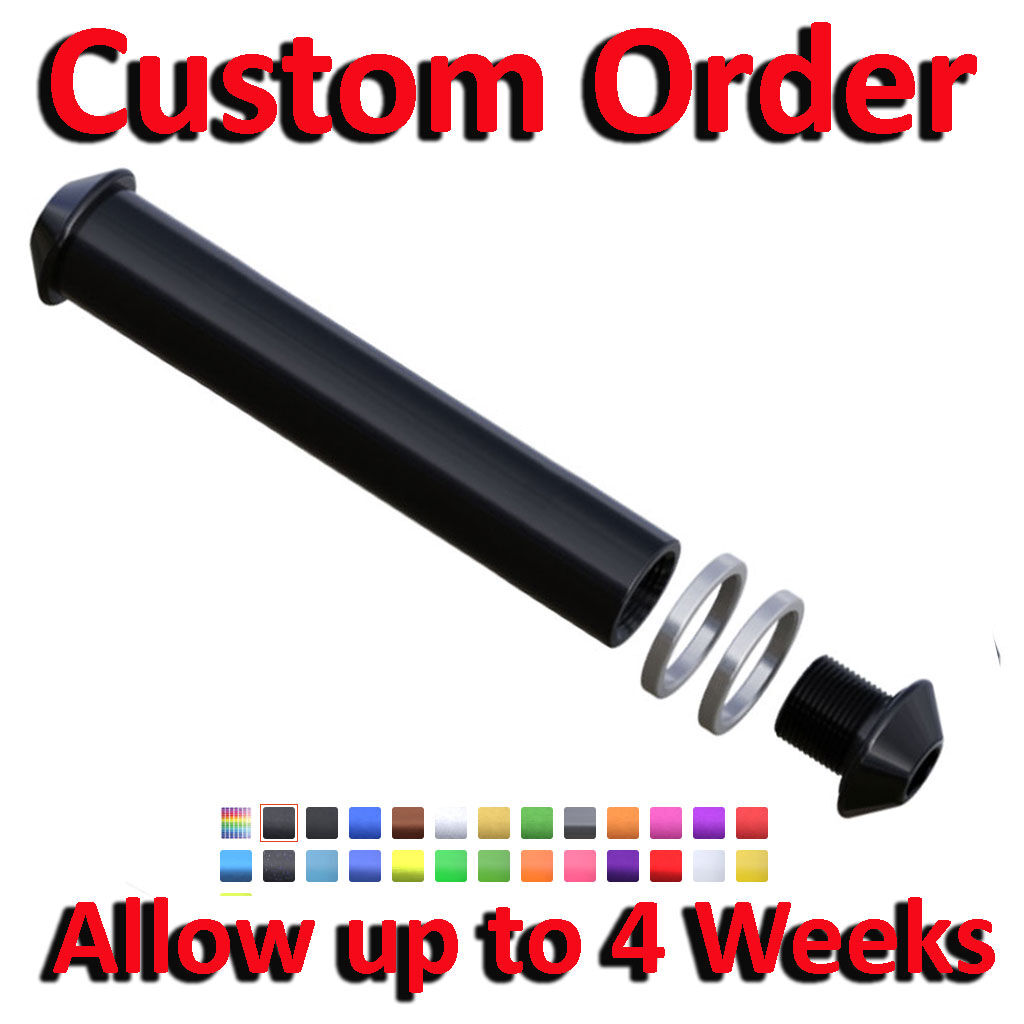

ONYX 20mm Thru Axle**CUSTOM ORDER**

Onyx manufactured aluminium thru-bolt produced for Onyx front and rear hubs that utilise a thru-bolt system. Available in different lengths to suit the most popular frames and forks on the BMX race market, they come in both 15mm and 20mm diameter.

Every bolt includes 2x 2mm spacers.

Use these thru-bolts with any hub brand that requires a bolt system like this.

Note: Physical axle spacing is 2mm less that listed size to allow for compression. eg, 117mm axle spacing measures at 115mm.

Measuring for BMX Thru-axle Length



**Measure all lengths with spacers, chain tensioners, adaptors in place*

Add A + B + C to get overall length of axle required.

Thru axles are compatible with forks within +/- 1 mm of listed length.
Spacers included with thru-axles for length reduction.
Order next size up if frame/fork does not fall within parameters.

SKU 82HUBAXF20
Brand ONYX
Shipping Weight 0.2500kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.150m
