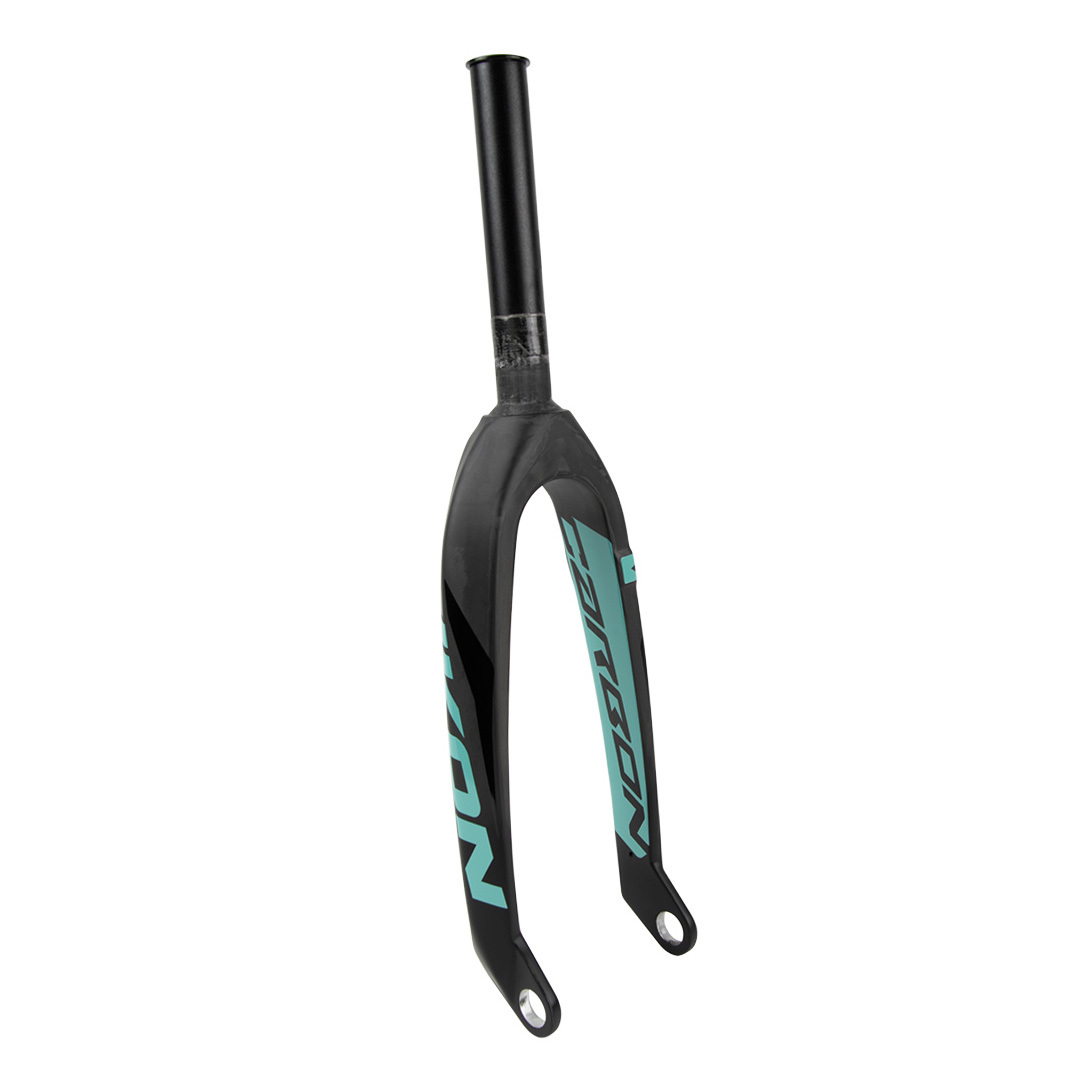

IKON BMX Carbon 20" Fork 20mm (Black/Teal) Straight

IKON now has a Pro size 1-1/8th full steer tube fork option for 20” frames. The IKON Pro 1 1/8th has the same look and design as our tapered fork, but with a full Alloy 1-1/8th steer tube and 20mm Fork Dropouts.

SPECIFICATIONS :

  • Material: Toray UD Carbon fiber Matte Natural Hand Laid Carbon Finish
  • Steer Tube Material: 7075-T6 Aluminium - 7mm thickness
  • Threadless steer tube: 1-1/8
  • Integrated fork race built in for 45degree bottom bearing - No additional fork race needed
  • Steer tube length : 172mm
  • Dropouts: CNC Machined 6061-T6 Aluminium
  • Dropout Axle : 20mm Thru (112mm length suggested) - Optional 20mm to 10mm / 3/8 adapters available
  • Axle to crown: 305mm - 20"
  • Offset: 31mm
  • Weight: 20" Fork 19.4 OZ / 1.2 LBS, or 533 Grams  (without top cap)

Due to the hand laid natural Tory UD CARBON, the fork has a unique look to it, unlike some types of traditional carbon fiber. The IKON Carbon is laid in a direction for optimal strength so there is non uniform carbon pattern and finish.

For use with a 20mm Axle - Suggested Lenght 114, not included. Excess Front Axle

SKU 72FK2021BLTEAL
Brand IKON
Shipping Weight 0.8000kg
Shipping Width 0.150m
Shipping Height 0.090m
Shipping Length 0.600m
Shipping Cubic 0.008100000m3
