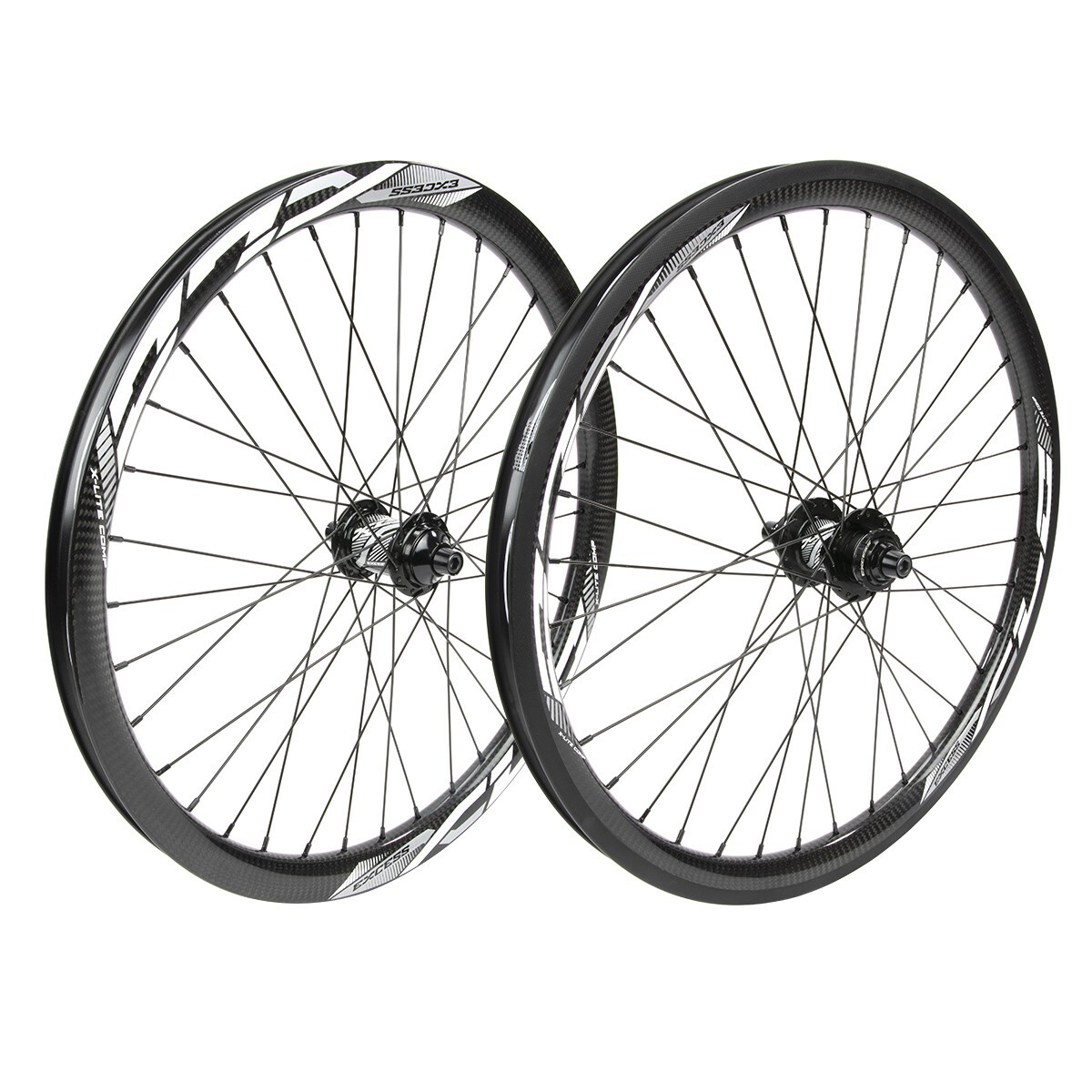

EXCESS XLC-3 507 36H CARBON WHEELSET

Excess XLC-3 Pro Lite/Pro 24” 507x30mm (24x1.50" / 24x1.75") Complete Wheels.

SOLD WITHOUT COG, WITHOUT CENTER LOCK DISC ADAPTER AND WITHOUT 20MM FRONT AXLE ADAPTER !

Excess is excited to offer the all new XLC-3 507 Carbon Wheelset. Excess XLC line is race focused and perfect for your high end race machine!
The XLC-3 Carbon Wheelset features our 3K Carbon Fiber rims that feature 2 different rim profiles front and rear, each with a low profile, and a 3K Carbon and hi-gloss finish, with the decals under the finish.

The Pro Lite/Pro 24” Wheelset is highlighted with a new rear Cassette Hub. The Excess Cassette hub system features 3 individual pawls with an upgraded 5 fin engagement system, that lock into a 120 ratchet ring inside the rear hub for a superior cassette system and torque grabbing system to ensure all the power gets to the ground with every pedal!
The Pro Lite/Pro 24” Carbon Wheelset offers the option for you to convert the rear hub to accept a disc brake, via an optional Disc Center Lock adapter! This gives you the best of both worlds. The Wheels are set up out of the box for V Brakes, but you can upgrade to Disc at anytime without getting a new rear hub!

Also offered an Axle Conversion - The wheels are delivered with a 3/8 front axle set up, but with the purchase of the optional front 20mm hub axle, you can also convert the front hub to be uses with 20mm dropout forks!

Pro XLC-3 Front Hub Features:

• 2 sealed bearings
• Alloy axle / Alloy end caps
• 3/8” bolts with alloy CNC bolts caps
• Optional 20mm Conversion axle kit sold separately

Pro XLC-3 Rear Hub with Center Lock Disc option Features:

• 4 sealed bearing
• Cromo axle
• 3/8” bolts with alloy CNC bolts caps
• Cromo driver (3 pawls with 5 fin engagement system, engage into a 120 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and lock ring
• Wheel set is not delivered with a rear cog
• Option to replace the supplied alloy lock ring and install the Center Lock Disc Adapter sold separately

Rim Features:

• 3K carbon with water stickers and shiny clear coating finish rim
• Low Profile Aero design
• Brakeless Surface Profile on front rim
• Brake Track surface Profile on rear rim
• Presta valve hole
• Angle Nipples Holes
• Wheels are Laced with 14G Stainless spokes & Brass nipples
• Excess rim tape included

Spokes Lenght:

• Front: 223mm
• Rear: 222/220mm

Wheel Weight:

• Front: 960g
• Rear: 1036g

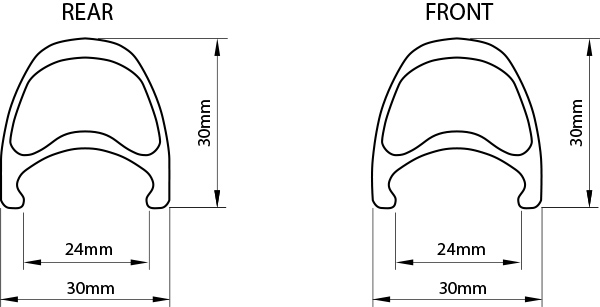

EXCESS XLC-3 507x30MM RIM SPECIFICATIONS

ERD: 24": 466.4mm
Height: 30mm
Internal Rim Width: 24mm (front) 24mm (rear)
External Rim Width: 30mm
Spoke tension recommended <115KGF
