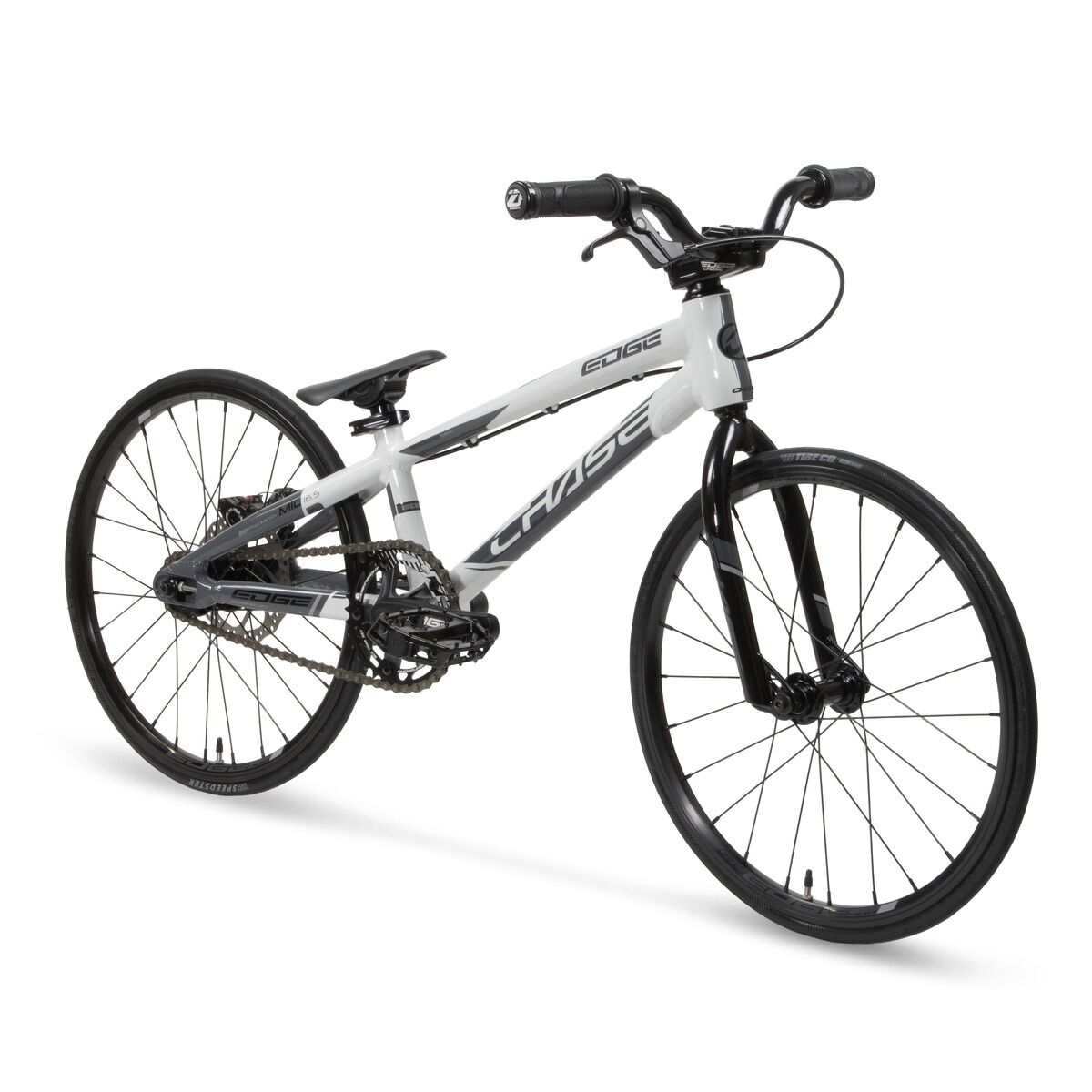

CHASE Edge Micro-Mini 16.25 TT (Cement)

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

The new Edge also features a two tone paint design, along with waterbed decals that are under the clear coat. Using some of the best brands in BMX to build up the Edge, we feature Pro level parts on various sizes of the Edge including Tioga tires, Chase 2 Piece 24mm Cranks, Insight Chain Ring, Shimano Brakes, a Triple Clutch System cassette hub, KMC Chains, and a Pivotal Seat and Seat Post. With 9 bike sizes offered, the Edge line up gives you a full range of size options for just about any size / age racer.

KEY FEATURES

• FRAME: CHASE Edge Micro 16.25″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
• FORK: CHASE Edge Micro, Full Cr-mo, 1″ Steer Tube
• STEM: CHASE Edge 40mm
• HANDLEBAR: CHASE Edge 2.25″
• HEADSET: Integrated Sealed Bearing
• CHAINRING: INSIGHT 35T 5 Bolts BCD 110mm
• CRANKSET: CHASE Edge Alloy 130mm, 113mm squared axle BB
• HUBS: CHASE Edge Mini, 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
• RIMS: CHASE Edge 100 Double Wall 18″x1″, 24H Front, 28H Rear
• TIRES: VEE RUBBER Speedster 18″x1″ Front and Rear
• BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
• SEAT: INSIGHT Mini Pivotal
• WEIGHT: 15.4 LBS / 6,99 KG WITHOUT PEDALS
• RIDER SIZE: 3′ 3,4″ – 3′ 8,9″ / 1M00 – 1M15
