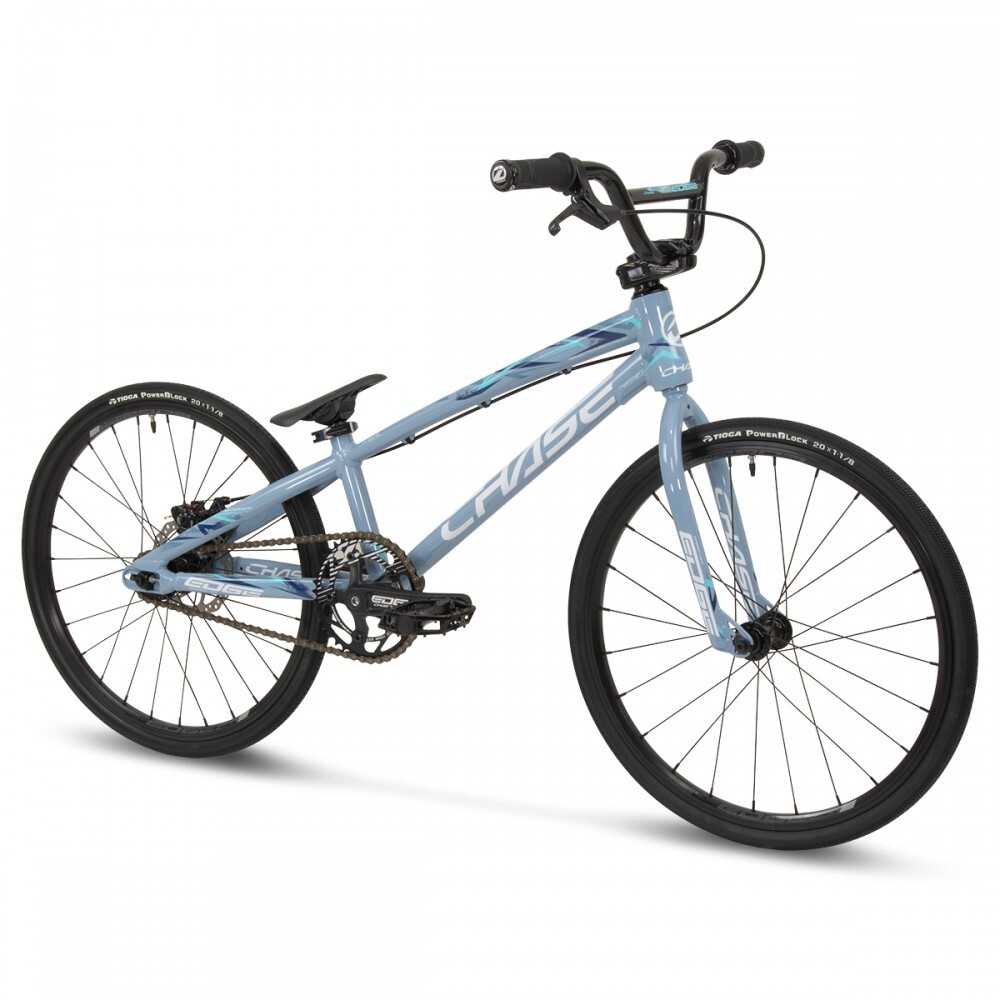

CHASE Edge Junior 18.75 TT (Slate)
The Chase Edge is our most sought after race bike for riders looking to get serious about BMX racing. With our 10 year history in offering complete bikes and our attention to detail, you know you are getting one of the best BMX bikes offered today! We build all our race bikes with our Championship winning geometry frames and then upgrade them with some of the top parts brands in BMX racing, such as Tioga, KMC, Insight and more. The Chase Edge will give you the edge over your competition and get on the way to #winwithChase
The Chase Edge Complete bike features a Disc Specific Race frame with Hydroformed & butted tubing, cable actuated disc brakes, integrated chain tensioner / disc brake mounting system, Tioga tires, Insight Chain Ring, Triple Clutch System cassette hub, KMC Chain, and a Pivotal Seat and Seat Post. With 10 bike sizes offered, the Edge line up gives you a full range of size options for just about any racer.
KEY FEATURES
- FRAME: CHASE Edge Junior 18.75″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: CHASE Edge Mini, Full Cr-mo, 1″ Steer Tube
- STEM: CHASE Edge 40mm
- HANDLEBAR: CHASE Edge 4.25″
- HEADSET: Integrated Sealed Bearing
- CHAINRING: INSIGHT 40T 5 Bolts BCD 110mm
- CRANKSET: CHASE Edge Alloy 155mm, 113mm squared axle BB
- HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
- RIMS: CHASE Edge 118 Double Wall 20″x1-1/8″, 24H Front and 28H Rear
- TIRES: TIOGA PowerBlock 20″x1-1/8″ Front and Rear
- BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
- SEAT: INSIGHT Mini Pivotal
- WEIGHT: 16.86 LBS / 7,95 KG WITHOUT PEDALS
- RIDER SIZE: 4′ – 4′ 5,1″/ 1M22 – 1M35
FRAME | CHASE Edge Junior 18.75″ Top Tube, 6061 T6 Alloy, Integrated 1″ Head Tube, Enclosed rear dropouts and Chain tensioner system |
FORK | CHASE Edge Mini Full Cr-mo, 1″ Steer Tube With Tapered Blades |
HEADSET | Integrated IS 42/42 Reductor 1″, Sealed Bearing |
HANDLEBAR | CHASE Edge 22.2mm, 4.25″ Rise, 24″ Wide, 8° Back Sweep, 2° Up Sweep |
GRIPS | INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug |
STEM | CHASE Edge 40mm 6061 T6 AlloyLaser Etched Logo |
BB | Euro Square 113mm Sealed Bearing |
CHAINRING | INSIGHT 40 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring |
CRANK | CHASE Edge 3 Piece Crank 155mm Alloy Arm, Cr-Mo Chainring Bolts |
PEDAL | Platform 9/16″ |
CHAIN | KMC Z1 narrow 1/2″x3/32″ |
COG | 16 Tooth |
FRONT HUB | CHASE Edge Mini, 3/8″ Axle, M6 bolts, 24H, Sealed Bearing |
REAR HUB | CHASE Edge Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets |
SPOKES | Front 208mm, Rear 198/199mm, 14 Gauge, Steel |
NIPPLES | 16mm, 14 Gauge, Brass |
FRONT RIM | CHASE Edge 118 Double Wall 24H 20″x1-1/8″ Presta Valve |
FRONT TIRE | TIOGA PowerBlock 20″X1-1/8″ Wire Bead |
REAR TIRE | TIOGA PowerBlock 20″X1-1/8″ Wire Bead |
TUBES | 20″x1-1/8″ Presta Valve |
BRAKES | Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor |
SADDLE | Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt |
SEAT POST | Pivotal 25.4x110mm Alloy |
SEAT CLAMP | Chase Edge QR Alloy 28.6mm |
FRAME SIZE | TT | CS min | LR | AF | SA | HT | SPL | BBH | WB | WHEELS |
---|---|---|---|---|---|---|---|---|---|---|
Micro | 16.25" 412.75mm |
10.85" 275.6mm |
1.8" 46mm |
71° | 69° | 4" 100mm |
8" 203.5mm |
10.25" 254mm |
28.81" 732mm |
18×1" |
Mini | 17.25" 438.15mm |
12.25" 312mm |
1.8" 46mm |
72° | 70° | 4.33" 110mm |
8.8" 225mm |
10.6" 269.2mm |
31.49" 800mm |
20×1-1/8" |
Junior | 18.75" 476.25mm |
12.5" 317.5mm |
1.8" 46mm |
73° | 72° | 4.33" 110mm |
8.8" 225mm |
10.6" 269.2mm |
33.85" 859.9mm |
20×1-1/8" |
Expert | 19.75" 501.65mm |
13" 330.2mm |
1.8" 46mm |
73° | 72° | 4.33" 110mm |
8.8" 225mm |
11" 279.4mm |
34.79" 883.8mm |
20×1-3/8" |
Expert XL | 20" 508mm |
13.5" 353mm |
1.8" 46mm |
73° | 72° | 4.7" 120mm |
8.8" 225mm |
11.5" 279.4mm |
35.55" 903mm |
20×1.50" |
Pro | 20.5" 520.7mm |
14" 355.6mm |
1.8" 46mm |
74° | 72° | 4.7" 120mm |
9.3" 238mm |
11" 279.4mm |
36.9" 938mm |
20×1.75" |
Pro XL | 21" 533.4mm |
14.15" 359.4mm |
1.8" 46mm |
74° | 72° | 4.7" 120mm |
9.3" 238mm |
11.5" 292.1mm |
37.21" 945.2mm |
20×1.75" |
Pro XXL | 21.5" 546.1mm |
14.15" 359.4mm |
1.8" 46mm |
74° | 72° | 4.7" 120mm |
9.3" 238mm |
11.5" 292.1mm |
38.16" 969.5mm |
20×1.75" |
Pro Cruiser | 21.5" 546.1mm |
14.5" 368.3mm |
1.8" 46mm |
74° | 71° | 4.7" 120mm |
9.3" 238mm |
10.6" 270mm |
37.97" 964.5mm |
24×1.75" |
With All complete bikes, we recommend having a professional Bicycle dealer complete your initial build up as well as doing a 1 month break in adjustment to check all specs and adjust the bike as needed for optimal riding performance. All bikes will need some adjustment out of the box and this is the responsibility of the final owner to make these adjustments.
SKU | 65CB240203JNRSLT |
Brand | Chase BMX |
Shipping Weight | 12.0000kg |
Shipping Width | 0.200m |
Shipping Height | 1.140m |
Shipping Length | 0.550m |
