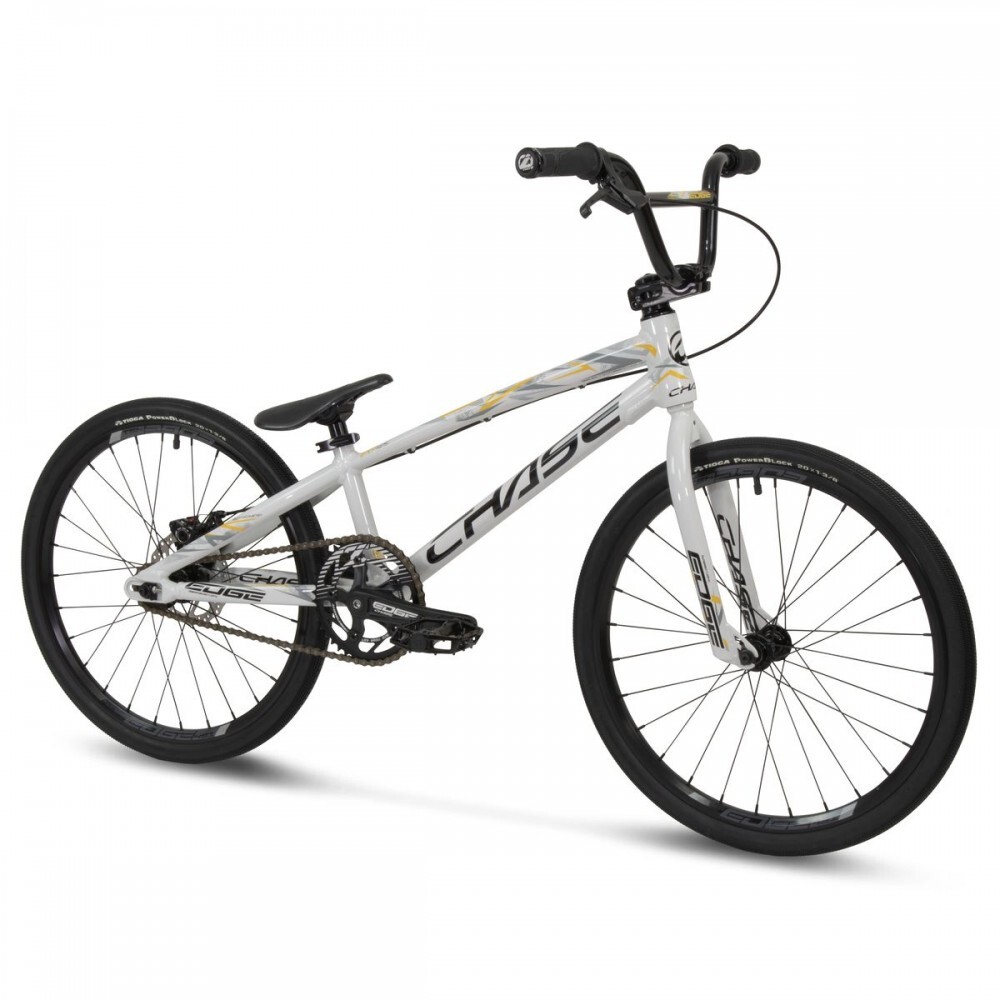

CHASE Edge Expert 19.75 TT (Cement)

The Chase Edge is our most sought after race bike for riders looking to get serious about BMX racing. With our 10 year history in offering complete bikes and our attention to detail, you know you are getting one of the best BMX bikes offered today! We build all our race bikes with our Championship winning geometry frames and then upgrade them with some of the top parts brands in BMX racing, such as Tioga, KMC, Insight and more. The Chase Edge will give you the edge over your competition and get on the way to #winwithChase

The Chase Edge Complete bike features a Disc Specific Race frame with Hydroformed & butted tubing, cable actuated disc brakes, integrated chain tensioner / disc brake mounting system, Tioga tires, Insight Chain Ring, Triple Clutch System cassette hub, KMC Chain, and a Pivotal Seat and Seat Post. With 10 bike sizes offered, the Edge line up gives you a full range of size options for just about any racer.

KEY FEATURES

  • FRAME: CHASE Edge Expert 19.75″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
  • FORK: CHASE Edge Expert, Full Cr-mo, 1-1/8″ Steer Tube
  • STEM: CHASE Edge 50mm
  • HANDLEBAR: CHASE Edge 5.75″
  • HEADSET: Integrated Sealed Bearing
  • CHAINRING: INSIGHT 42T 5 Bolts BCD 110mm
  • CRANKSET: CHASE Edge Alloy 165mm, 113mm squared axle BB
  • HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
  • RIMS: CHASE Edge 138 Double Wall 20″x1-3/8″, 28H Front and Rear
  • TIRES: TIOGA PowerBlock 20″x1-3/8″ Front and Rear
  • BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
  • SEAT: CHASE Edge Pro Pivotal
  • WEIGHT: 18.6 LBS / 8,47 KG WITHOUT PEDALS
  • RIDER SIZE: 4′ 4″ – 4′ 9,5″ / 1M32 – 1M46
FRAME CHASE Edge Expert 19.75″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System
FORK CHASE Edge Expert Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades
HEADSET Integrated IS 42/42 1-1/8″, Sealed Bearing
HANDLEBAR CHASE Edge 22.2mm, 5.75″ Rise, 25.5″ Wide, 8° Back Sweep, 2° Up Sweep
GRIPS INSIGHT C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM CHASE Edge 50mm 6061 T6 Alloy Laser Etched Logo
BB Euro Square 113mm Sealed Bearing
CHAINRING INSIGHT 42 Tooth 5 Bolts 110mm 1/2″x3/32″ 3mm Alloy Ring
CRANK CHASE Edge 3 Piece Crank 165mm Alloy Arm, Cr-Mo Chainring Bolts
PEDAL Pro Platform 9/16″ Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN KMC Z1 narrow 1/2″x3/32″
COG 16 Tooth
FRONT HUB CHASE Edge Mini, 3/8″ Axle, M6 bolts, 28H, Sealed Bearing
REAR HUB CHASE Edge Mini ISO, 3/8″ Axle, M6 bolts, 28H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES Front 206mm, Rear 198/199mm, 14 Gauge, Steel
NIPPLES 16mm, 14 Gauge, Brass
FRONT RIM CHASE Edge 138 Double Wall 28H 20″x1-3/8″ Schrader Valve
FRONT TIRE TIOGA PowerBlock 20″x1-3/8″ Wire Bead
REAR TIRE TIOGA PowerBlock 20″x1-3/8″ Wire Bead
TUBES 20″x1-3/8″ Schrader Valve
BRAKES Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
SADDLE CHASE Edge Pro Pivotal
SEAT POST Pivotal 25.4x110mm Alloy
SEAT CLAMP Chase Edge QR Alloy 28.6mm
FRAME SIZE TT CS min LR AF SA HT SPL BBH WB WHEELS
Micro 16.25"
412.75mm
10.85"
275.6mm
1.8"
46mm
71° 69° 4"
100mm
8"
203.5mm
10.25"
254mm
28.81"
732mm
18×1"
Mini 17.25"
438.15mm
12.25"
312mm
1.8"
46mm
72° 70° 4.33"
110mm
8.8"
225mm
10.6"
269.2mm
31.49"
800mm
20×1-1/8"
Junior 18.75"
476.25mm
12.5"
317.5mm
1.8"
46mm
73° 72° 4.33"
110mm
8.8"
225mm
10.6"
269.2mm
33.85"
859.9mm
20×1-1/8"
Expert 19.75"
501.65mm
13"
330.2mm
1.8"
46mm
73° 72° 4.33"
110mm
8.8"
225mm
11"
279.4mm
34.79"
883.8mm
20×1-3/8"
Expert XL 20"
508mm
13.5"
353mm
1.8"
46mm
73° 72° 4.7"
120mm
8.8"
225mm
11.5"
279.4mm
35.55"
903mm
20×1.50"
Pro 20.5"
520.7mm
14"
355.6mm
1.8"
46mm
74° 72° 4.7"
120mm
9.3"
238mm
11"
279.4mm
36.9"
938mm
20×1.75"
Pro XL 21"
533.4mm
14.15"
359.4mm
1.8"
46mm
74° 72° 4.7"
120mm
9.3"
238mm
11.5"
292.1mm
37.21"
945.2mm
20×1.75"
Pro XXL 21.5"
546.1mm
14.15"
359.4mm
1.8"
46mm
74° 72° 4.7"
120mm
9.3"
238mm
11.5"
292.1mm
38.16"
969.5mm
20×1.75"
Pro Cruiser 21.5"
546.1mm
14.5"
368.3mm
1.8"
46mm
74° 71° 4.7"
120mm
9.3"
238mm
10.6"
270mm
37.97"
964.5mm
24×1.75"

With All complete bikes, we recommend having a professional Bicycle dealer complete your initial build up as well as doing a 1 month break in adjustment to check all specs and adjust the bike as needed for optimal riding performance. All bikes will need some adjustment out of the box and this is the responsibility of the final owner to make these adjustments.



SKU 65CB240204EXPCEM
Brand Chase BMX
Shipping Weight 12.0000kg
Shipping Width 0.200m
Shipping Height 1.140m
Shipping Length 0.550m
